LabMaster ^® 68 pin High-Density Cable

LabMaster 68pin High-Density Cable

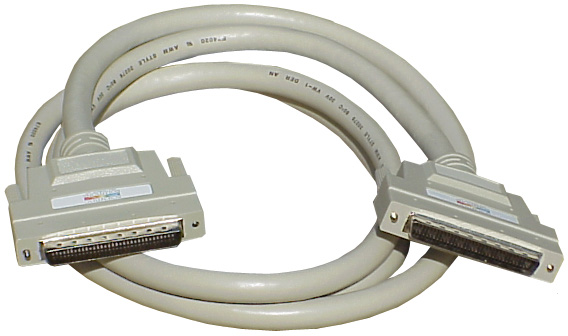

The LabMaster 68pin High-Density Cable is made to connect to the back of LabMaster cards that utilize the high-density 68pin connector. The connector on the LabMaster cards and the cable connector form a "pin-and-socket" pair. The pair is polarized so that the cable can only be connected in the correct orientation. The cable has thumb-screws that can be used to securely make the connection.

The 68pin cable comes in a standard length of 6 feet.

The LabMaster 68pin Cable provides the following features:

68 signal connections
- High density connector provides 68 signal connections thru a physically small connector
- Connections to LabMaster cards using the 68pin connector

Polarized connector
- Eliminates errors in making the connection and protects equipment

Thumb-Screw Retaining
- Creates a strong connection with easy to use thumb-screws
- Minimizes cable dis-connections when moving equipment

Flexible Cable Material
- The cable is made of shielded cable material that provides electrical shielding, yet is flexible and easy to bend and move.

Technical Specifications

LabMaster 68pin Cable
Length	6 foot
Connection	68pin "pin-and -socket"
Polarized Connection	yes
Thumbscrews	yes
Shielding	Foil shielding and drain wire

Specifications subject to change without notice.

Scientific Solutions liability, trademarks, and export notices apply.
